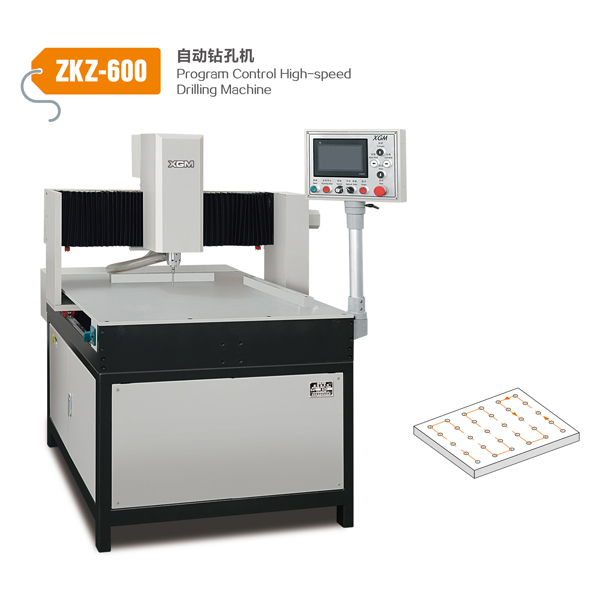

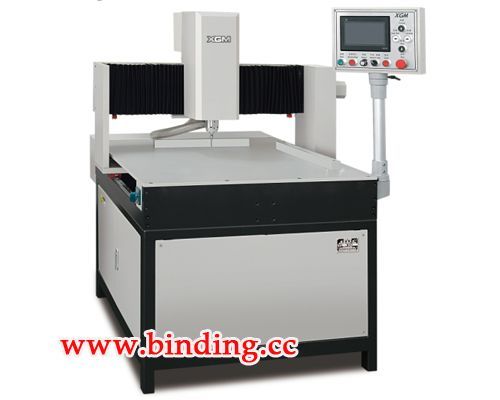

ZKZ-600 Program Control High-speed Drilling Machine

Content

 ZKZ-600 Program Control High-speed Drilling Machine


The Features :
1. It has a computer touch screen control, easy and convenient operation .

2. Adopt servo motor drive, motion transferred by precision ball screw , ensure its

 high-speed , accurate and stable performance .

3 .It has centralized extraction fan, effectively prevent bit jam.

4 .The seal design can be dustproof .

5.There are three models of standard , alternate , irregular to meet all kinds of products .

6. The press device on the table plate makes the paper tidy , also improves the drilling accuracy and production efficiency . (Mainly aiming at mount , coated products )

7. At present , most of the factories at home and abroad is using mechanical drilling

machines that has low efficiency and poor security . This machine  greatly improves

not only the efficiency , but also the security .It is suitable for various kinds of paper

materials . tags , cards , etc . It is an ideal drilling equipment for printing and

packaging factories .

Main technical parameter:

Model

ZKZ-600

Drilling Diameter

Φ3-Φ8mm

Drilling depth

Φ3 = 30mm, Φ4 = 35mm, Φ5-8 = 40mm

Max Paper Size

600mm * 720mm

Drill Speed

0-45 times/min

Power

2kw

Packing Weight

800kg

 Packing Size

1600*1300*1700mm
