Paper Folding Machine

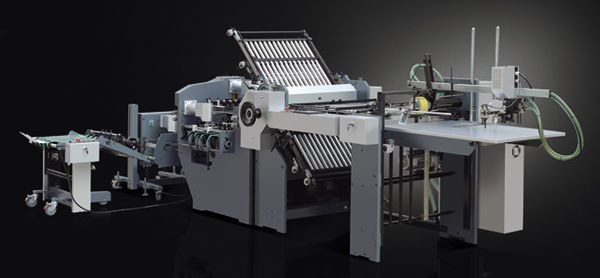

ZYHD660E Combi-folding machine (with electric control knife)



This machine adopts Japan's Omron, servo-controlled transmission systems, PLC control system, high-precision photoelectric,close to detection system, Frequency Control, color display screen contact. Fold knife by the servo motor control, stepping fold knife controlled and adjusted by the servo motor is safe and convenient to debug, and can achieve full detection, tracking ,data displaying ,troubleshooting tips and so on, it is suitable for large and medium-sized printing factory.(Knife won the national electronic control technology patents and access to scientific and technological progress second prize.)We are pioneer of China's electric-control folding equipment



Main Technical Parameter


Foldable max sheet size    660*1040mm
Foldable mix sheet size 150*200mm
Foldable  sheet rotation range 40-200g/O
Folding & rolling max line speed


Clasp knife max speed 200 strokes/min
Total power  6kw
Packing Size main:2070*1630*1470mm
Total packing weight 2590kgs

Products List


Established in 1975specializing in design, production, sales and service, Wenzhou Xinguang Machinery Co., Ltd. is the key enterprise of Professional printingbinding equipment production in China..
