Paper Bag Machine

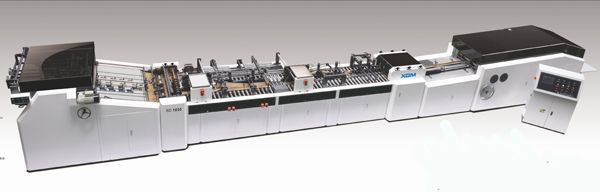

SD-1050 Automatic Sheet Feeding Square Bottom Paper Bag Making Machine

Content

Specifications :

The machine adopts mechanical and electrical and optical integration technology,

the primary colors or printed one time line pressing flat paper, glue, above the paper into a tube, the bottom,

the bottom of the glue, bag forming, out of the bag.

It is the production of portable paper bag of the ideal equipment, obtained two national patents of invention patent,

a Wenzhou scientific and technological progress second prize.

Structured products: product size error is little,pocket square.

High productivity: suitable for batch production, size change specifications soon

High efficiency:simple operation, reduce operating staff, material consumption

Production safety: single point of control and safety protection design makes operation more safe, convenient, fast.

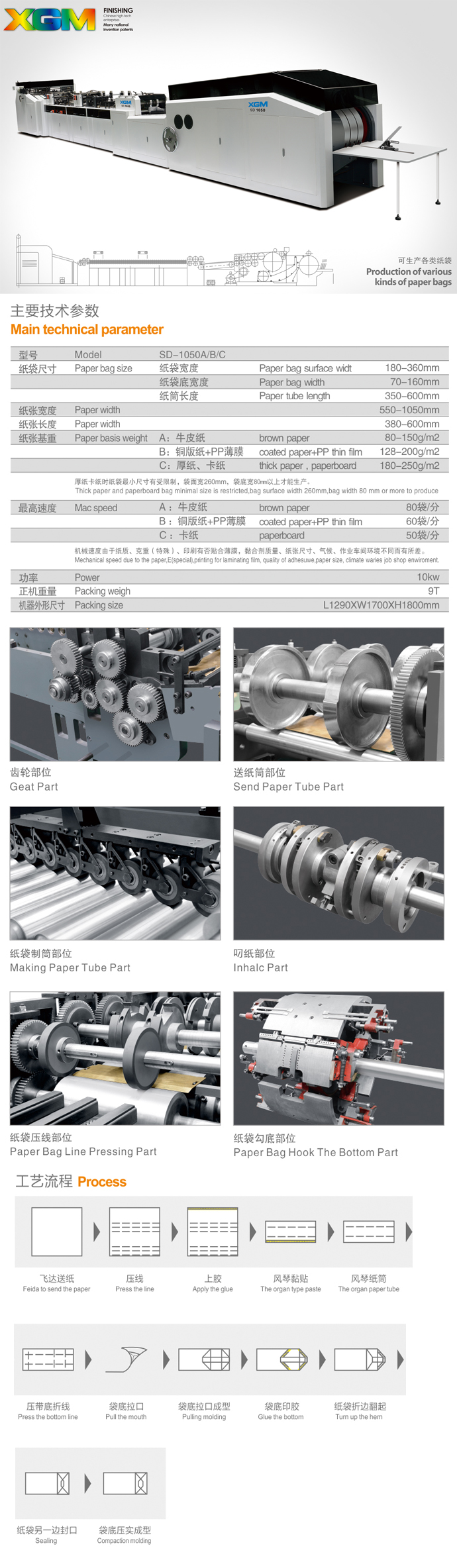

Main technical parameter:

Paper bag size: paper bag surface width: 180-360 mm

                          paper bag width: 70-160 mm

                          paper tube length: 350-600 mm

Paper width: 550-1050 mm

Paper length: 380-600mm

Paper basis weight: A: brown paper 80-150 g/sq.m

                                B: coated paper + PP thin film 128-200 g/sq.m

                                C: thick paper, paperboard  180-250 g/sq.m

A,B,C: Thick paper and paperboard bag minimal size is restricted,bag surface

width 260mm, bag width 80mm or more to produce.

Max. speed:A: brown paper:  80 bags/min

                   B: coated paper + PP thin film: 60 bags/min

                   C: paperboard: 50 bags/min

Power: 10 kw

Packing weight: 9T

Packing size: 12.9*1.7*1.9 m (L*W*H)

A,B,C: Machanical speed due to the paper,g(special),printing for laminating film,quality of adhesive,climate varies job shop enviroment.
