Glue Binding Machine

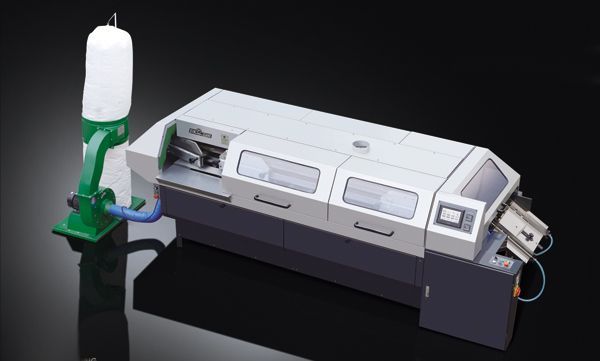

JBT50/5D Elliptic perfect binding machine (automatic feed cover)

Content

Specifications

The company has produced the binders for more than 30 years. Now it has passed the attestation of ISO9001 international quality system. Recently it cooperates with Japan Cihua Company and develops the JBT50/3D/4D Elliptic perfect binding machine, which is as advanced as the world same kind machine .Partial parameters surpass the world level.
 With the machine speed regulation by frequency transformer, PLC program control and PID temp erature control, photoelectric identification control and automatic test and control many advanced technologies are adopted. At the same time, many foreign electric elements and pneumatic elements are asopted in order that the machine has higher stability. Because the machine also has the breaker of mucus equipment ,driving wastepaper adsorption apparatus and automatic out-book equipment, it is more perfect.
The machine can be used to gluing binding with thread and gluing binding without thread. It is the best equipment for binding of books in printers and binderies.



Main technical parameters:

Binding Breadth
max: 450×300mm(big folio)
max: 450*270mm(small folio)
min: 160×120 mm
Binding Thickness
3 ~ 50 mm
Binding Speed
2000 book/hour(本/小时)
Total Power
18 kw
Packing Weight
2000 kg
Packing Size
4000x1700x1640 mm
Clip Quantity 5(clamps)
